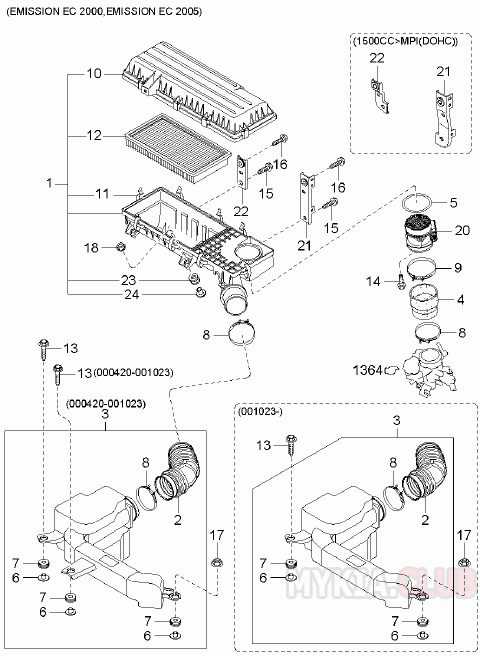

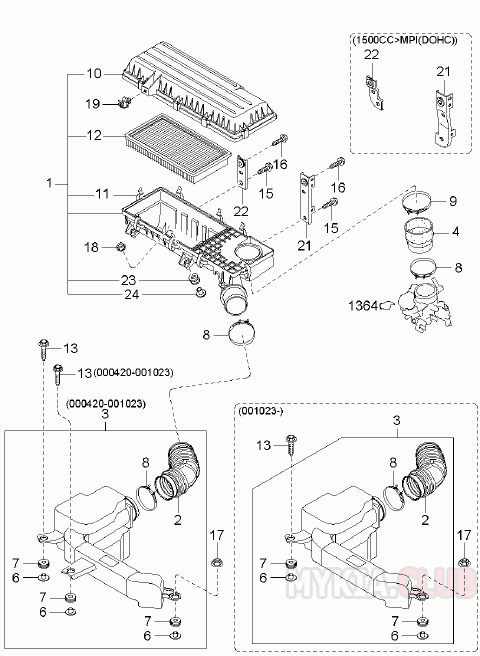

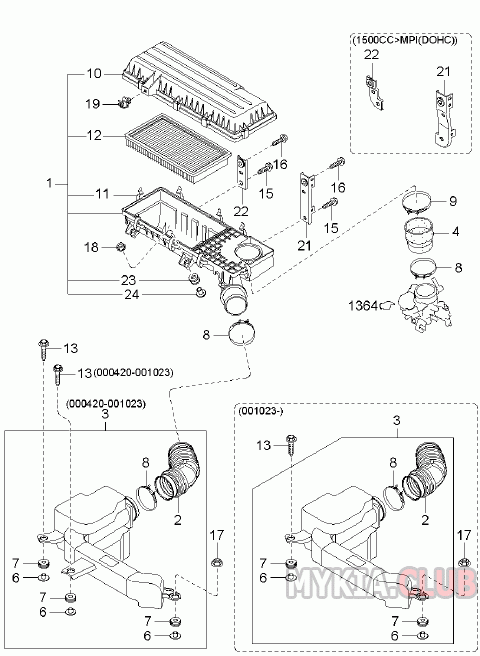

Воздушный фильтр двигателя, его корпус и патрубки Kia Rio 1 (BС)

устройство и коды запчастей

Скрытый текст

1 CLEANER -AIR 0K30A13320 1
1 CLEANER -AIR 0K30C13320C 1
2 HOSE-AIR INTAKE 0K30A13202B 1
2 HOSE-AIR 0K32A13202 1
3 DUCT ASSY-FRESH AIR 0K30A1320XG 1
3 DUCT ASSY-FRESH AIR 0K30A1320XH 1
3 DUCT ASSY-FRESH AIR 0K30A1320XJ 1
3 DUCT ASSY-FRESH AIR 0K32A1320X 1
3 DUCT ASSY-FRESH AIR 0K32A1320XA 1
3 DUCT ASSY-FRESH AIR 0K32A1320XB 1
4 HOSE-AIR INTAKE 0K30C13220A 1
4 HOSE-AIR INTAKE 28138FD000 1
5 O-RING 0K30C13232 1
6 SPACER 0K72C13364 3
7 INSULATOR 0S50113349 3
8 CLAMP-HOSE 0F8B313735 3
9 CLAMP-HOSE 0FEH613736 1
10 COVER-AIR CLEANER 0K30C13Z01C 1
11 CLIP 0K30C13Z27B 8
12 FILTER-AIR CLEANER 0K30C13Z40A 1
13 BOLT K907962620B 2
14 BOLT K997940618 2
15 BOLT-FLANGE(8*65) 1140308143 FLANGE 2
16 BOLT 1140308203 2
17 NUT-CAP 1317306003 1
17 NUT-FLANGE K999400603B 1
18 NUT 1339608003 2
19 CLIP-HOSE 0K29T13447 1
19 CLIP-HOSE 0K30C13447 1
20 METER-AIR FLOW 0K32A13210 1
21 BRACKET ASSY-AIR CLEANER 0K30C1314X 1
21 BRACKET ASSY-AIR CLEANER 0K30E1314X 1
22 BRACKET ASSY-AIR CLEANER 0K30C1314YA 1
22 BRACKET ASSY-AIR CLEANER 0K30E1314Y 1
23 RUBBER 0K30C13365 2
24 SPACER{B} 0K30C13366 2
